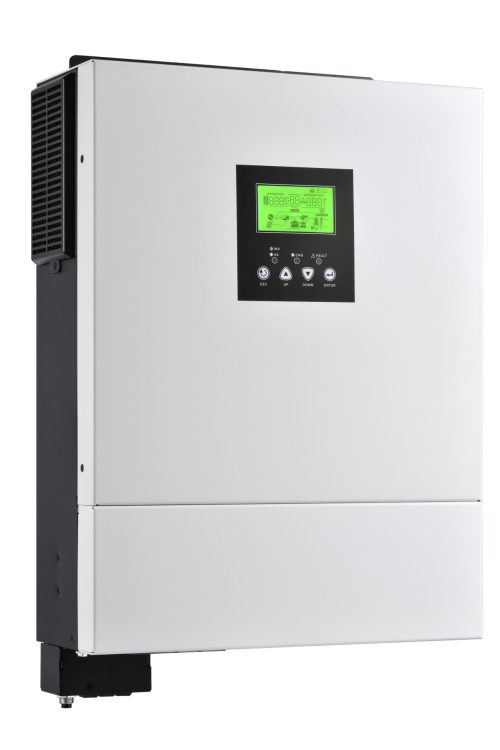

Inverter InfiniSolar VII 3P9kW Hybrid
45.055 MDL
Inverter InfiniSolar V II 3P 9kW- Hybrid инвертор с возможностью автономной работы от АКБ, а так же экспорта излишков энергии в городскую сеть. Широкий диапазон настроек и доступная цена делает его отличным выбором для дома.
Нет в наличии
Описание
| Характеристики | |
| Phaze | 3 |
| input DC | |
| Max PV power (W) | 12000 |
| Rated voltage (V) | 120-430VDC |
| Max. input voltage (V) | 450VDC |
| Start-up voltage (V) | 130VDC |
| MPPT track | 3 |
| Max. input current (A) | 16 |
| Max. input strings number | 1 |
| Bat. Data | |
| Bat. Voltage | 48VDC |
| Max. Solar Charging Carent | 180A |
| Max. AC Charging Carent | 180A |
| Max. Charging Carent | 180A |
| Output AC | |
| Rated output power (W) | 9000 |
| Nominal out Voltage (V) | 220/230/240VAC(P-N) 380/400/415VAC(P-P) |
| Max. output current (A) | 13 per phase |
| Input AC Data | |
| Nominal in Voltage | 90-280V |
| Maximal Current (A) | 30 |
| Rated grid voltage | 3/N/PE |
| Efficiency | |
| Max.efficiency | 93% |
| EU efficiency | 93% |
| Dimension | |
| (DxWxH) mm | 588*260*655 |
| Weight (Kg) | 38 |
| Operating ambient temperature range | -25~60℃ |
| Ingress protection | Ip41 |
| Cooling concept | Natural convection |
| Features | |
| DC connection | MC4 connector |
| Display | LCD |
| AC connection | Quick connection plug |
| Communication | USB/RS232 and dry contact |
| Paralel mode | 3 units |
